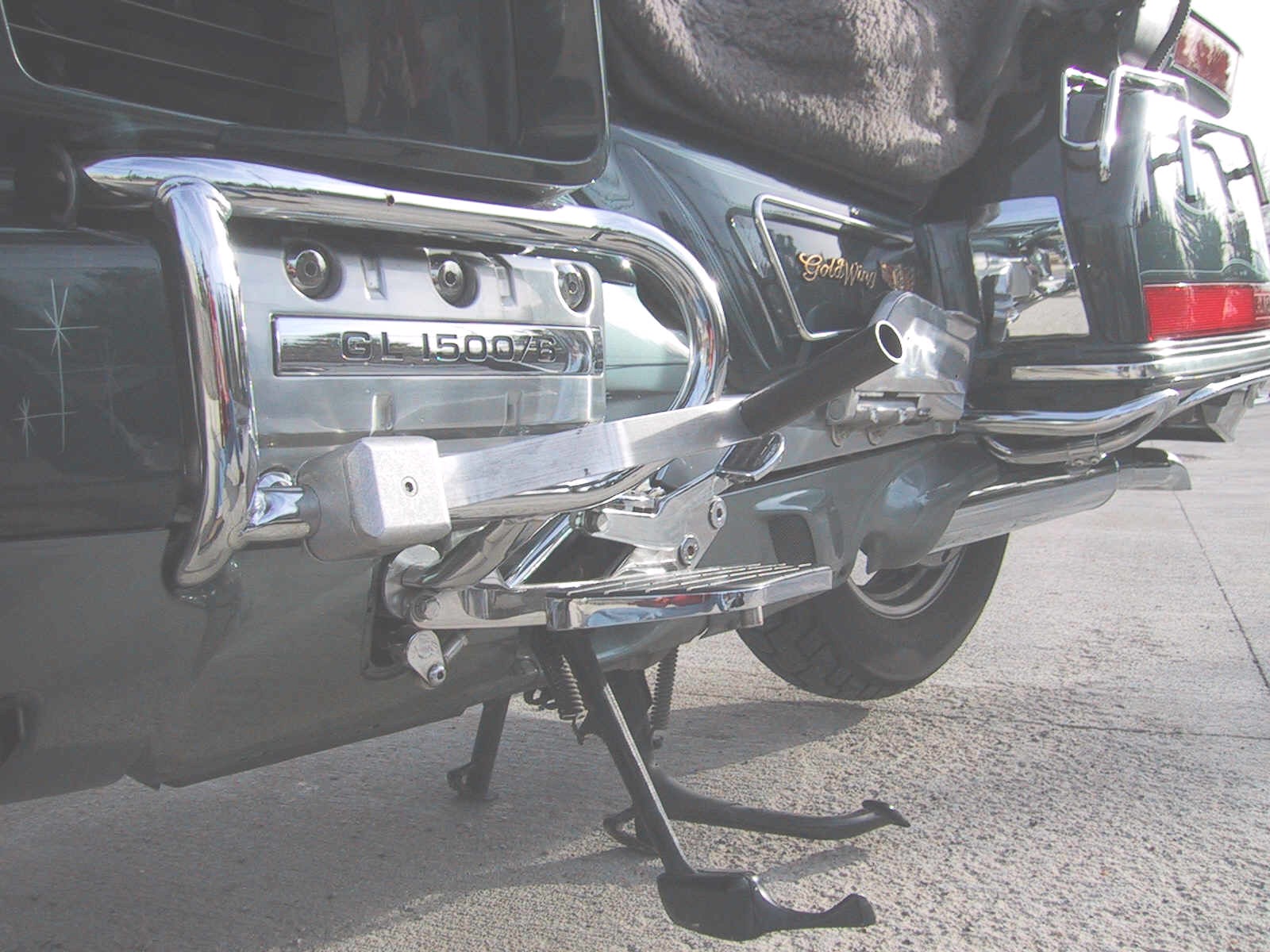

Pic #1 & 2. Both allow your ankles to clear floorboards.

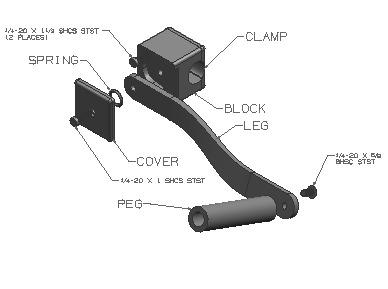

Model GA gives a lower peg position, about even w/bottom of engine, but ability to lean is limited to about 30 degrees when
down. Model GD provides a peg position 2 1/2" higher than Model GA, but increases ability to lean by about 10 degrees when
down.

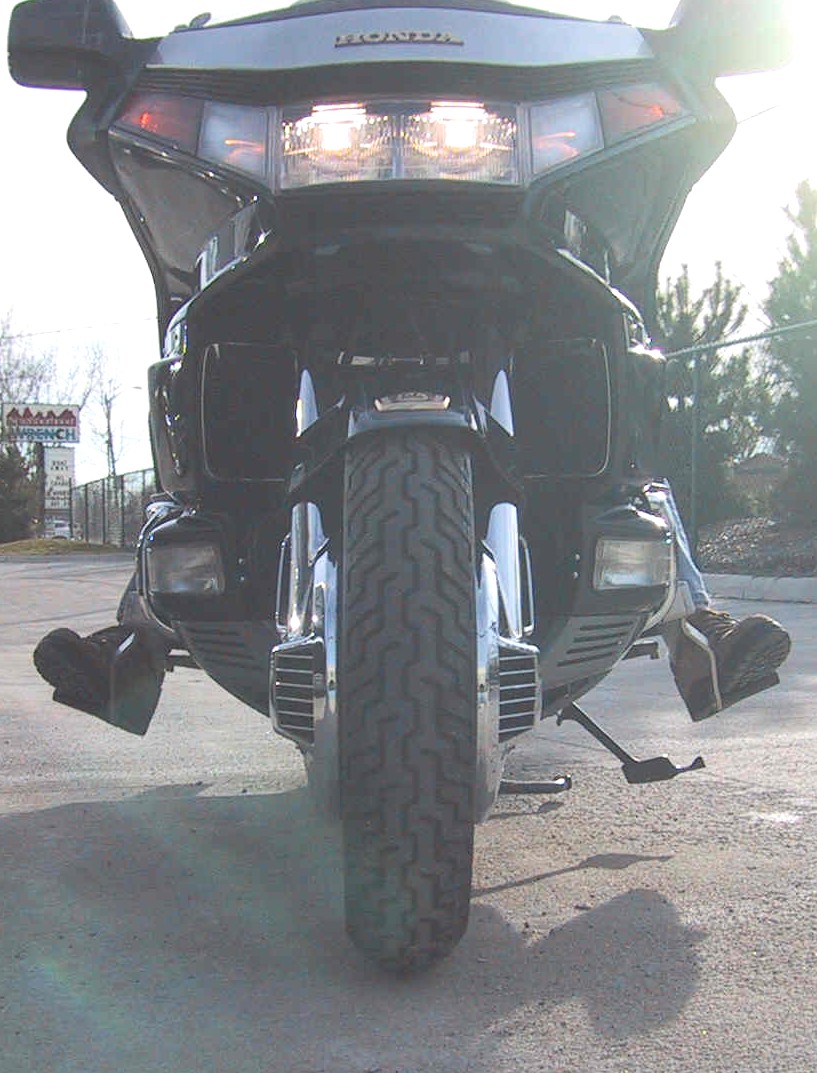

Pic #3. Mounting forward or with the block on an angle
provides varied peg positions.
Pic #4. Additional choices are Models KA & KD which give a cruiser riding position with feet ahead of knees and spread to get around the engine. Model KD is a better choice
for your 4 cylinder Gold Wing because the peg is about 2 1/2" higher.
You have considered two basic foot positions here. GA and GD are closer in than KA and KD. GA and KA give a straighter
leg position than GD and KD.
If you have decided on a Model, please continue with Step #2 and #3 to make sure you
consider all information.
|
